Turning SCADA Data into Action in HxGN EAM
SCADA systems generate enormous volumes of operational data—temperatures, pressures, runtimes, vibration readings—but data alone does not create value. Value is created when that data drives timely, contextual maintenance decisions.
In HxGN EAM, the bridge between external condition data and actionable maintenance intelligence is the R5ALERTDATAOBJ table.
This article explains what R5ALERTDATAOBJ is, why it exists, and how it enables scalable, asset-aware SCADA integration without overwhelming EAM or maintenance teams.
Why Raw SCADA Data Should Not Go Directly into EAM
SCADA and EAM serve fundamentally different purposes:
SCADA | EAM |
High-frequency signals | Transactional maintenance system |
Real-time control | Lifecycle asset history |
Milliseconds matter | Context matters |
Tag-based | Asset-based |
Attempting to stream raw SCADA telemetry directly into EAM leads to:
- Performance issues
- Data noise and alarm fatigue
- Loss of asset context
- Maintenance teams ignoring alerts
EAM needs qualified condition events, not raw signals. That is exactly what R5ALERTDATAOBJ is designed to hold.
What Is R5ALERTDATAOBJ?
R5ALERTDATAOBJ is HxGN EAM’s object-centric alert and condition event table.
Unlike generic alert tables, R5ALERTDATAOBJ explicitly ties each condition record to an EAM object—asset, position, or system—making it immediately usable by maintenance logic, workflows, and analytics.
Think of it as EAM’s condition event intake layer.
What Data Typically Lives in R5ALERTDATAOBJ
While implementations vary, most organizations store:
Category | Example |
Object Reference | Asset / Position / System code |
Object Type | A, P, or S |
Alert / Condition Type | TEMP_HIGH, VIB_WARN, FLOW_LOW |
Measured Value | Numeric reading |
Threshold / Limit | Engineering or calculated limit |
Severity | Info, Warning, Alarm, Critical |
Event Timestamp | When the condition occurred |
Source System | SCADA, PLC, Historian |
Processing Status | New, Evaluated, Actioned |
This structure allows EAM to reason about the condition, not just store it.

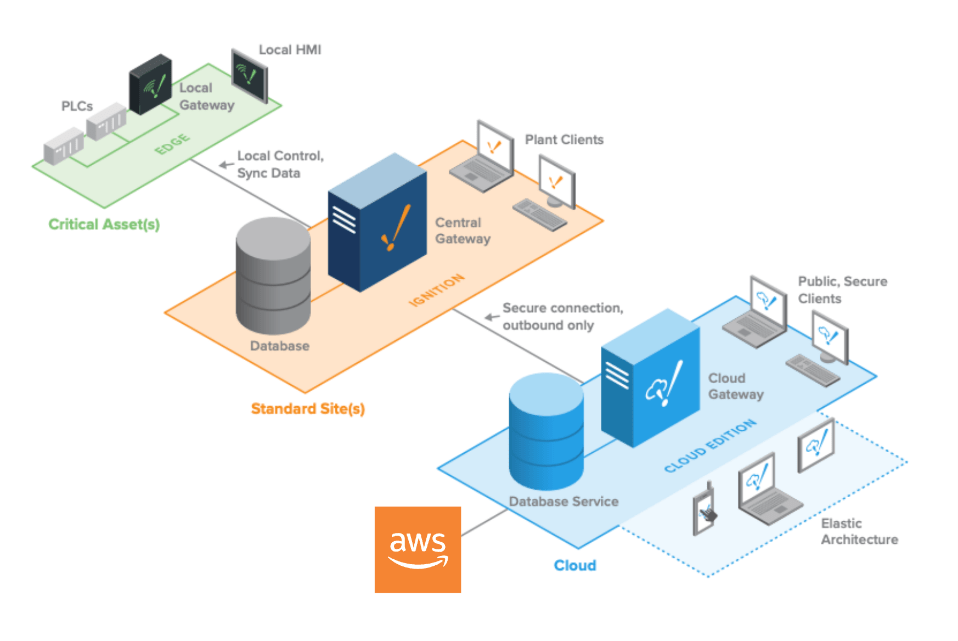

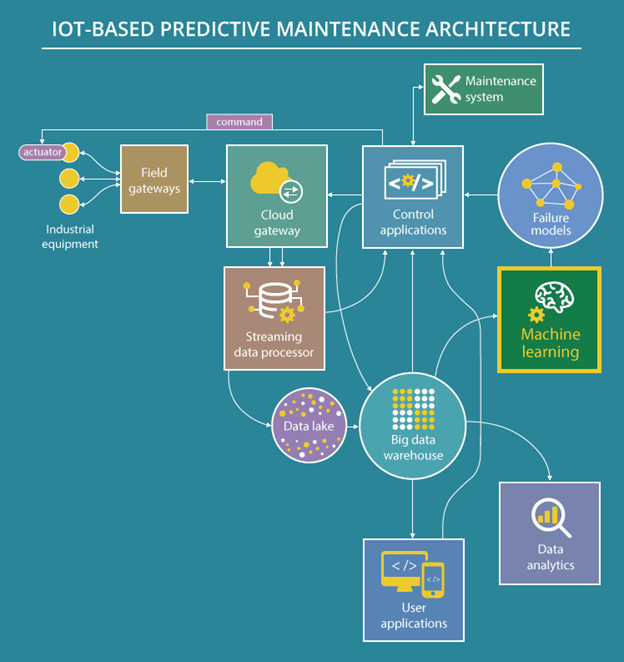

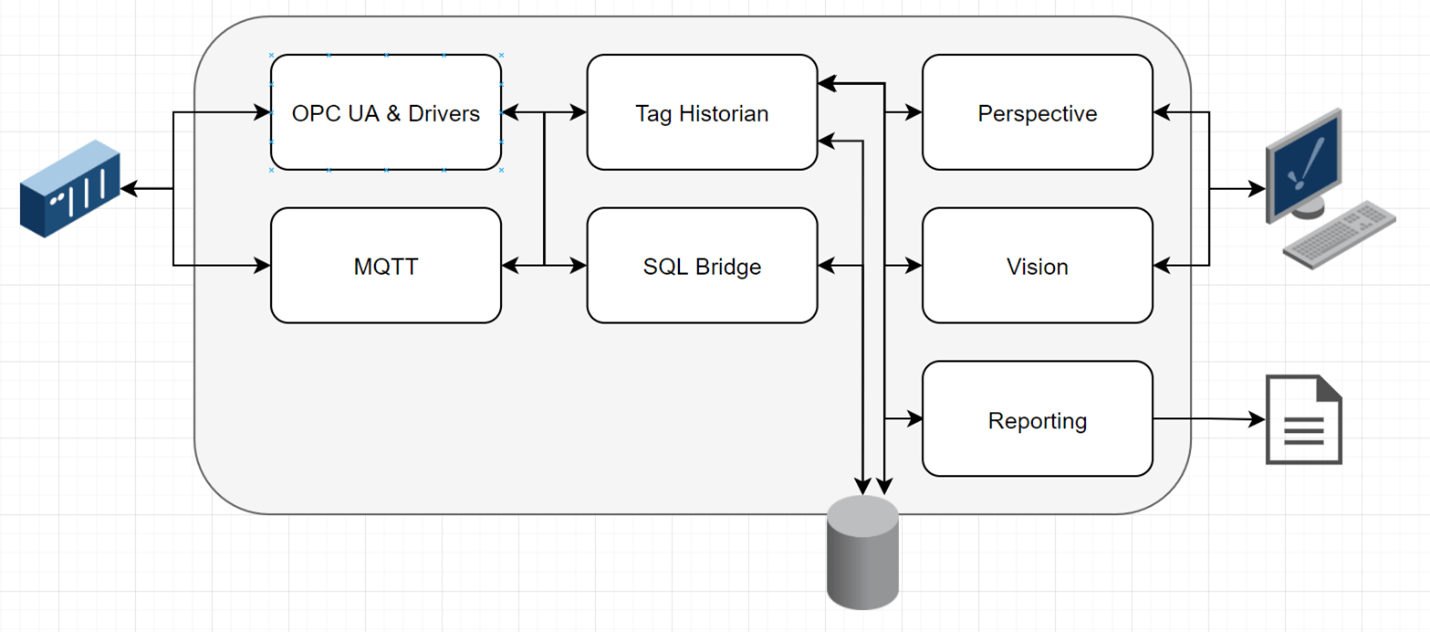

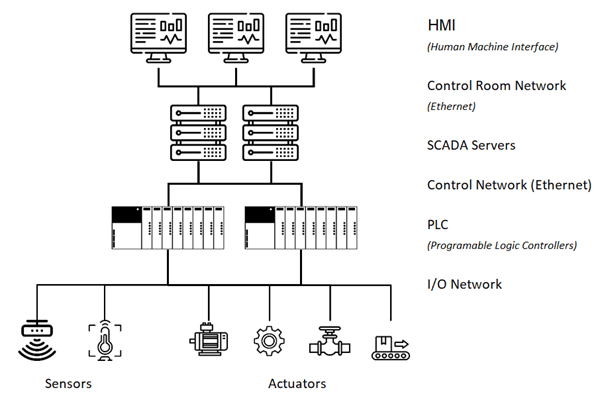

Where R5ALERTDATAOBJ Fits in a SCADA → EAM Architecture
A best-practice integration flow looks like this:
- SCADA / PLC / Historian
- Collects raw, high-frequency telemetry
- Collects raw, high-frequency telemetry
- Integration or Analytics Layer
- Applies filtering, aggregation, persistence rules
- Determines “this matters” vs “this is noise”
- Qualified Events Written to R5ALERTDATAOBJ
- One record per meaningful condition
- Object-linked, timestamped, severity-rated
- HxGN EAM Alert Management
- Evaluates alerts using business rules
- Applies asset criticality and history
- Maintenance Actions
- Work orders
- Notifications
- Inspections
- KPI updates
This architecture keeps EAM lean, SCADA fast, and maintenance focused.
How HxGN EAM Uses R5ALERTDATAOBJ
Once data lands in R5ALERTDATAOBJ, it becomes first-class maintenance intelligence.
- Object-Aware Alert Evaluation: Because alerts are tied to EAM objects, rules can account for:
- Asset criticality
- Redundancy
- Regulatory classification
- Maintenance history
- Intelligent Work Order Creation
Examples:
- Repeated high vibration → inspection work order
- Runtime threshold exceeded → condition-based PM
- Pressure loss on critical system → corrective WO
- De-Duplication and Persistence Logic
EAM can:
- Ignore transient spikes
- Act only after X occurrences in Y hours
- Escalate severity based on recurrence
- Reliability and Analytics Enablement
Over time, R5ALERTDATAOBJ supports:
- Failure precursor analysis
- Condition-to-failure correlation
- Continuous improvement of thresholds
Best Practices for Implementing R5ALERTDATAOBJ
✅ Filter Before You Insert
Never load raw telemetry. Only load:
- Threshold breaches
- Calculated conditions
- Trend-based exceptions
✅ Standardize Alert Types
Use controlled values like:
- TEMP_HIGH
- TEMP_HIGH_HIGH
- VIB_WARN
- VIB_ALARM
This keeps alert rules understandable and auditable.
✅ Align to Asset Strategy
Ensure SCADA tags map to:
- The level work is performed (asset vs system)
- Your maintenance responsibility model
✅ Treat Alerts as Evidence, Not Orders
R5ALERTDATAOBJ should inform decisions, not blindly create work.
✅ Track What Was Acted On
Use status flags to:
- Prevent duplicate work orders
- Measure alert effectiveness
- Refine thresholds over time
Example: Condition-Based Pump Monitoring
Scenario
A wastewater pump shows increasing vibration over multiple days.
Flow
- SCADA detects elevated vibration
- Integration layer confirms persistence
- Single summarized condition inserted into R5ALERTDATAOBJ
- EAM rule evaluates:
- Object criticality = High
- Condition recurrence = Yes
- EAM creates:
- Inspection work order
- Alert reference attached to the WO
Outcome
- No alarm fatigue
- Early intervention
- Condition history preserved against the asset
From Alerts to Asset Intelligence
When implemented correctly, R5ALERTDATAOBJ transforms SCADA from a real-time alarm system into a maintenance intelligence engine:
- SCADA detects
- R5ALERTDATAOBJ contextualizes
- EAM decides
- Maintenance acts
This pattern is foundational for condition-based maintenance, predictive analytics, and long-term reliability improvement—without compromising system performance or overwhelming users.
